MCS360 - Combined stretcher chair

Download Manual

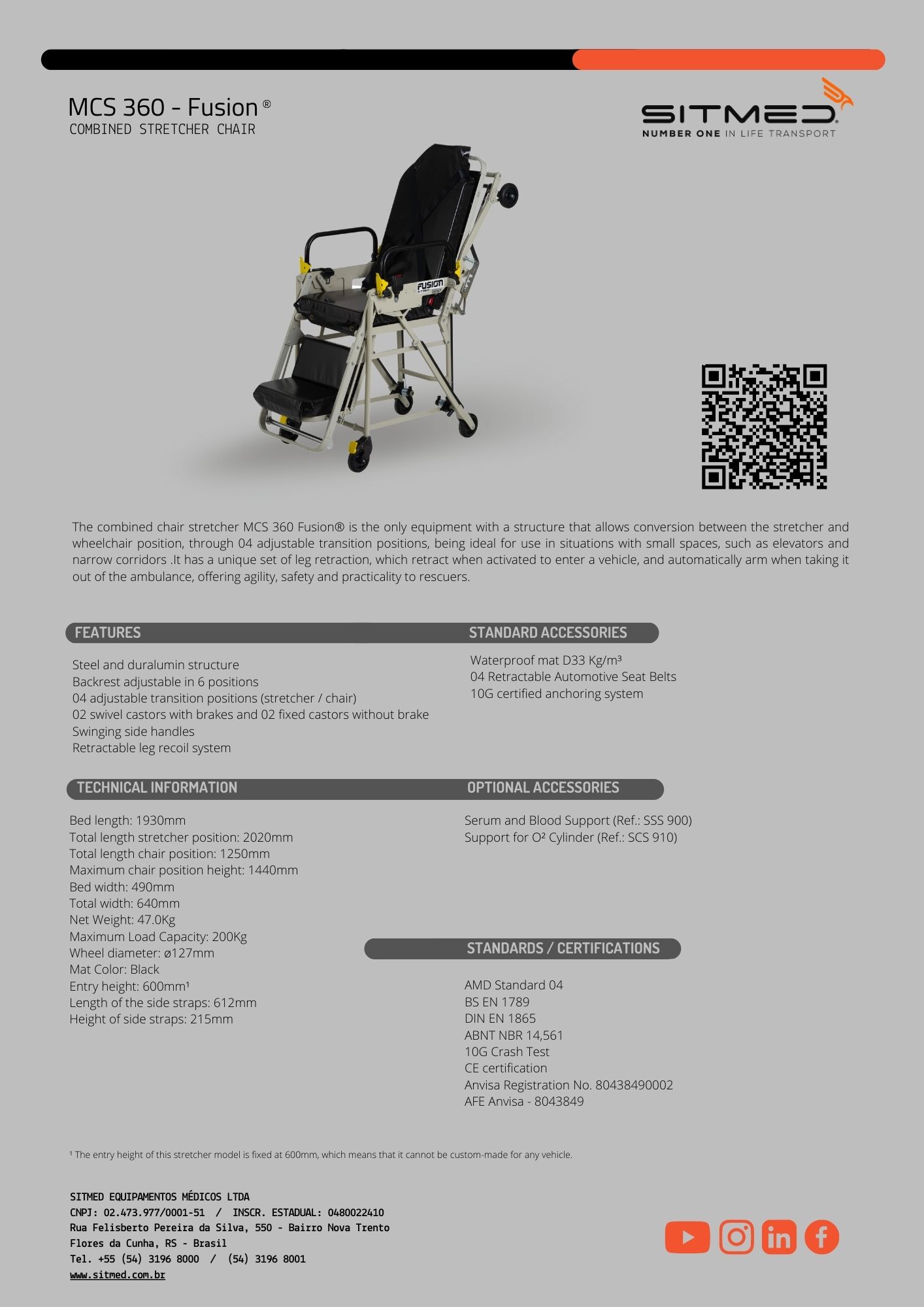

Technical sheet

The combined chair stretcher MCS 360 Fusion® is the only equipment with a structure that allows conversion between the stretcher and wheelchair position, through 04 adjustable transition positions, being ideal for use in situations with small spaces, such as elevators and narrow corridors .It has a unique set of leg retraction, which retract when activated to enter a vehicle, and automatically arm when taking it out of the ambulance, offering agility, safety and practicality to rescuers.

Characteristics

Steel and duralumin structure
Backrest adjustable in 6 positions
04 adjustable transition positions (stretcher / chair)
02 swivel castors with brakes and 02 fixed castors without brake
Swinging side handles
Retractable leg recoil system

TECHNICAL INFORMATION

Bed length	1930mm	Net Weight	47,0Kg
Total length stretcher position	2020mm	Maximum Load Capacity	200Kg
Total length chair position	1250mm	Wheel diameter	ø127mm
Maximum chair position height	1440mm	Mat Color	Black
Bed width	490mm	Entry height	600mm¹
Total width	640mm	Length of the side straps	612mm
Height of side straps	215mm

¹ The entry height of this stretcher model is fixed at 600mm, which means that it cannot be custom-made for any vehicle.

INCLUDED ACCESSORIES

Waterproof mat D33 Kg/m³
04 Retractable Automotive Seat Belts
10G certified anchoring system

OPTIONAL ACCESSORIES

Waterproof mat D33 Kg/m³
04 Retractable Automotive Seat Belts
10G certified anchoring system

STANDARDS/CERTIFICATIONS

AMD Standard 04
DIN EN 1865
BS EN 1789
ABNT NBR 14.561

10G Crash-Test
CE Certification
Anvisa Registration nº 80438490002
AFE Anvisa - 8043849
